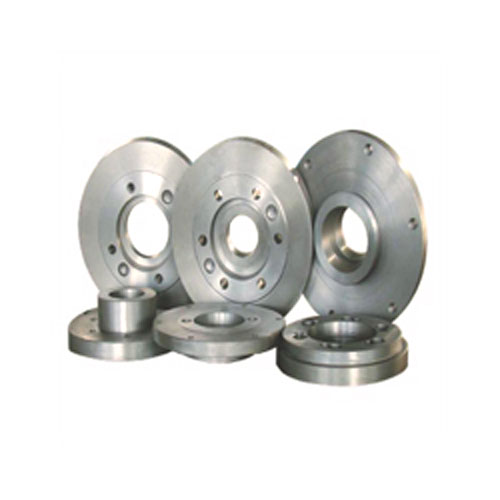

產品：FL
產品特性:
■特點：
☆用于卡盤（短圓柱連接形式）與機床主軸的連接。
☆與機床主軸連接形式有：
1、短錐型：包括A型（A1、A2）、C型、D型（連接參數符合GB/T5900.1- GB/T5900.3(ISO702)標準）。
2、長錐型：包括L00、L1、L2、L3。
3、螺紋型。
■Specificity:
☆Available for chucks (short cylindrical center mounting)mounted with the machine spindle noses.
☆The mounting types are as follows:
1、The short taper type includes A（A1、A2）、C and D(The mounting parameters conform to GB/T5900.1- GB/T5900.3(ISO702)standards)).
2、The long taper type includes L00、L1、L2、L3。
3、The thread type.
產品詳情
■短錐型 Short taper type
|
規格D
Size
|
主軸頭號
NO.
|
A型
Type A
|
C型、D型
Type C, Type D
|
|
160
|
3
|
—
|
●
|
|
160
|
4
|
●
|
●
|
|
160
|
5
|
●
|
●
|
|
200
|
4
|
—
|
●
|
|
200
|
5
|
●
|
●
|
|
200
|
6
|
●
|
●
|
|
250
|
5
|
—
|
●
|
|
250
|
6
|
●
|
●
|
|
250
|
8
|
●
|
●
|
|
315(325)
|
6
|
●
|
●
|
|
315(325)
|
8
|
●
|
●
|
|
315(325)
|
11
|
—
|
●
|
|
380
|
6
|
—
|
●
|
|
380
|
8
|
●
|
●
|
|
380
|
11
|
●
|
●
|
|
500
|
8
|
●
|
●
|
|
500
|
11
|
●
|
●
|
|
500
|
15
|
—
|
●
|
|
630
|
11
|
●
|
●
|
|
630
|
15
|
●
|
●
|
■A型(A1、A2) Type A(A1、A2)
|
主軸頭號
No.
|
3
|
4
|
5
|
6
|
8
|
11
|
15
|
|
D1
|
53.975
|
63.513
|
82.563
|
106.375
|
139.719
|
196.869
|
285.775
|
|
D2
|
70.6
|
82.6
|
104.8
|
133.4
|
171.4
|
235
|
330.2
|
|
D3
|
92
|
108
|
133
|
165
|
210
|
280
|
380
|
|
D4
|
—
|
—
|
61.9
|
82.6
|
111.1
|
165.1
|
247.6
|
|
d
|
M10
|
M10
|
M10
|
M12
|
M16
|
M20
|
M24
|
■C型 Type C
|
主軸頭號
No.
|
3
|
4
|
5
|
6
|
8
|
11
|
15
|
|
D1
|
53.975
|
63.513
|
82.563
|
106.375
|
139.719
|
196.869
|
285.775
|
|
D2
|
75
|
85
|
104.8
|
133.4
|
171.4
|
235
|
330.2
|
|
D3
|
102
|
112
|
135
|
170
|
220
|
290
|
400
|
產品備注
■D型 Type D
|
主軸頭號
No.
|
3
|
4
|
5
|
6
|
8
|
11
|
15
|
|
D1
|
53.975
|
63.513
|
82.563
|
106.375
|
139.719
|
196.869
|
285.775
|
|
D2
|
70.6
|
82.6
|
104.8
|
133.4
|
171.4
|
235
|
330.2
|
|
D3
|
92
|
117
|
146
|
181
|
225
|
298
|
403
|
根據用戶需求，可作相應規格的鋼制法蘭盤。
Note: As requested ,the steel body adapter plate can be provided.
■4°錐型
■長錐型 Long taper type
|
規格D
Size.
|
L00
|
L0
|
L1
|
L2
|
L3
|
|
160
|
●
|
●
|
—
|
—
|
—
|
|
200
|
●
|
●
|
●
|
—
|
—
|
|
250
|
●
|
●
|
●
|
●
|
—
|
|
315(325)
|
—
|
●
|
●
|
●
|
—
|
|
380
|
—
|
—
|
●
|
●
|
—
|
|
500
|
—
|
—
|
—
|
●
|
●
|
|
630
|
—
|
—
|
—
|
—
|
●
|
|
規格D
Size.
|
L00
|
L0
|
L1
|
L2
|
L3
|
|
K
|
54
|
63.5
|
76.2
|
89
|
102
|
|
D1
|
69.85
|
82.55
|
104.78
|
133.35
|
165.11
|
|
D2（UNS）
|
3 3/4″-6
|
4 1/2″-6
|
6″-6
|
7 3/4″-5
|
10 3/8″-4
|
|
D3
|
56
|
66
|
84.5
|
109
|
137
|
|
H
|
14
|
15
|
16
|
22
|
24
|
■螺紋型 Thread type
|
規格D
Size.
|
D1
|
D2
|
D3
|
K
|
L
|
|
125
|
1″-10UNS
|
25.781
|
55
|
12.7
|
39
|
|
125
|
1 1/2″-10UNS
|
38.481
|
68
|
12.7
|
39
|
|
160
|
1 1/2″-10UNS
|
38.481
|
68
|
15.9
|
39
|
|
160
|
2 1/4″-10UNS
|
57.404
|
81
|
12.7
|
45.5
|
|
200
|
1 1/2″-10UNS
|
38.481
|
68
|
15.9
|
39
|
|
200
|
2 1/4″-10UNS
|
57.404
|
81
|
19
|
45.5
|
|
200
|
2 3/8″-10UNS
|
60.579
|
110
|
15.9
|
52
|
|
250
|
2 1/4″-10UNS
|
57.404
|
81
|
19
|
45.5
|
|
325
|
2 3/8″-10UNS
|
60.579
|
110
|
19
|
52
|
|
325
|
2 3/8″-10UNS
|
70.104
|
110
|
19
|
52
|
|
